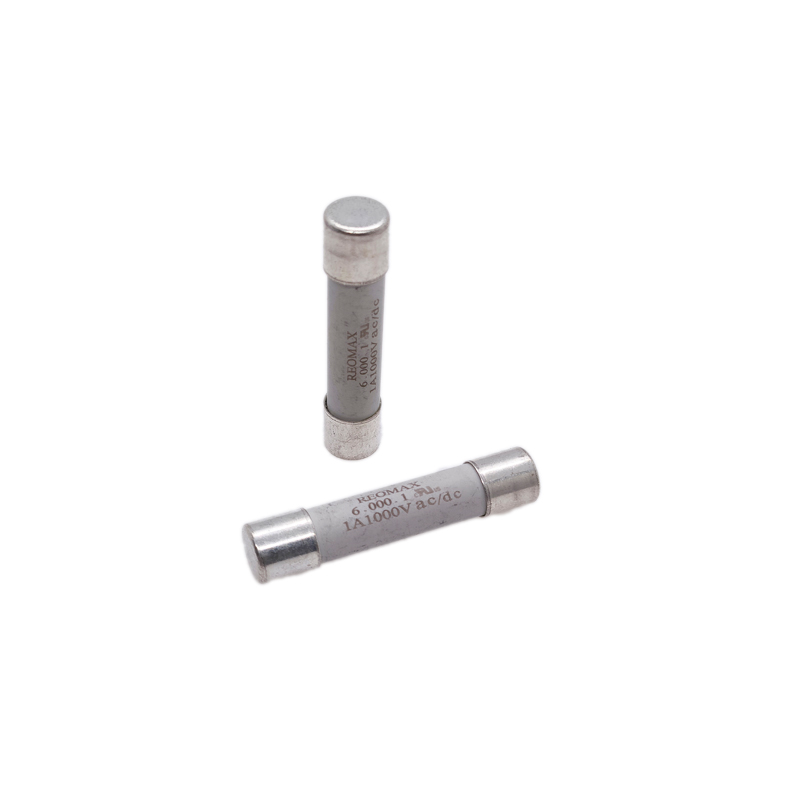

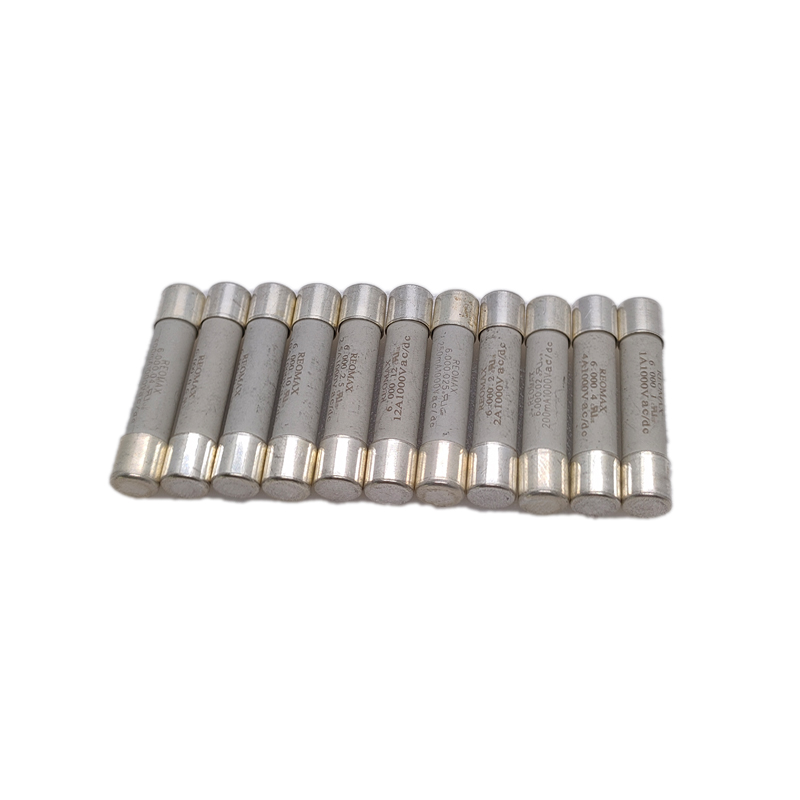

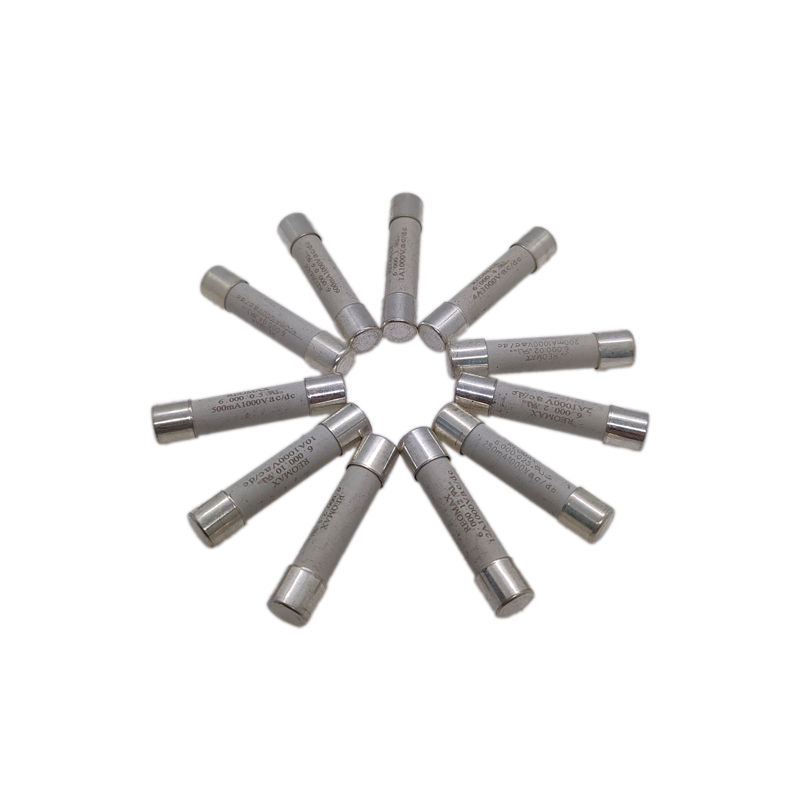

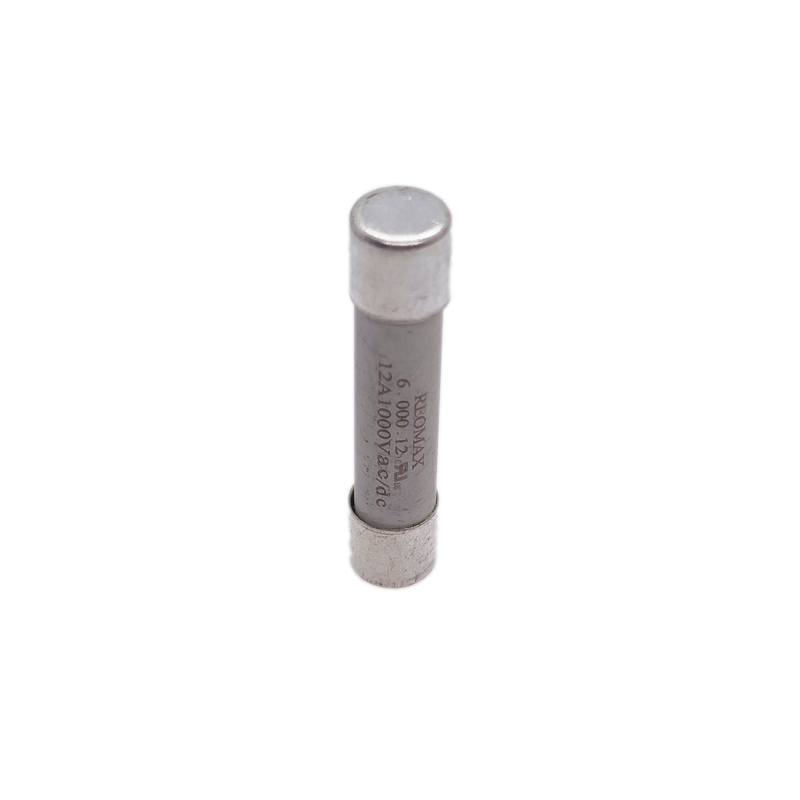

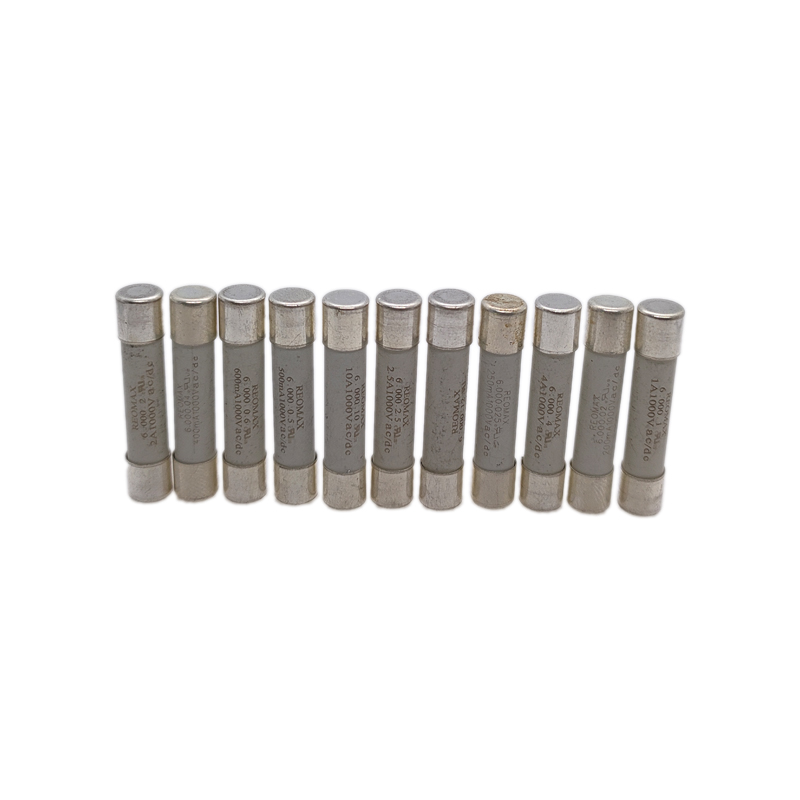

1000VDC/AC, 6x30mm, Fast Acting, Ceramic Tube Fuses,6.000 Series, For Digital Measuring Instruments,Power supplies - adapters Battery chargers Desktops/notebooks Printers B-SS 5MM fuse 2007-02 TVs/displays Game systems Set top boxes Air conditioners Lighting ballasts Printed circuit boards.
Features and Benefits
Fast Acting, high breaking capacity under 1000VDC/AC
6x30mm physical size
Special Engineering Material tube, Silver plated copper cap construction
Designed to UL 248-Lead Free and Halogen free material

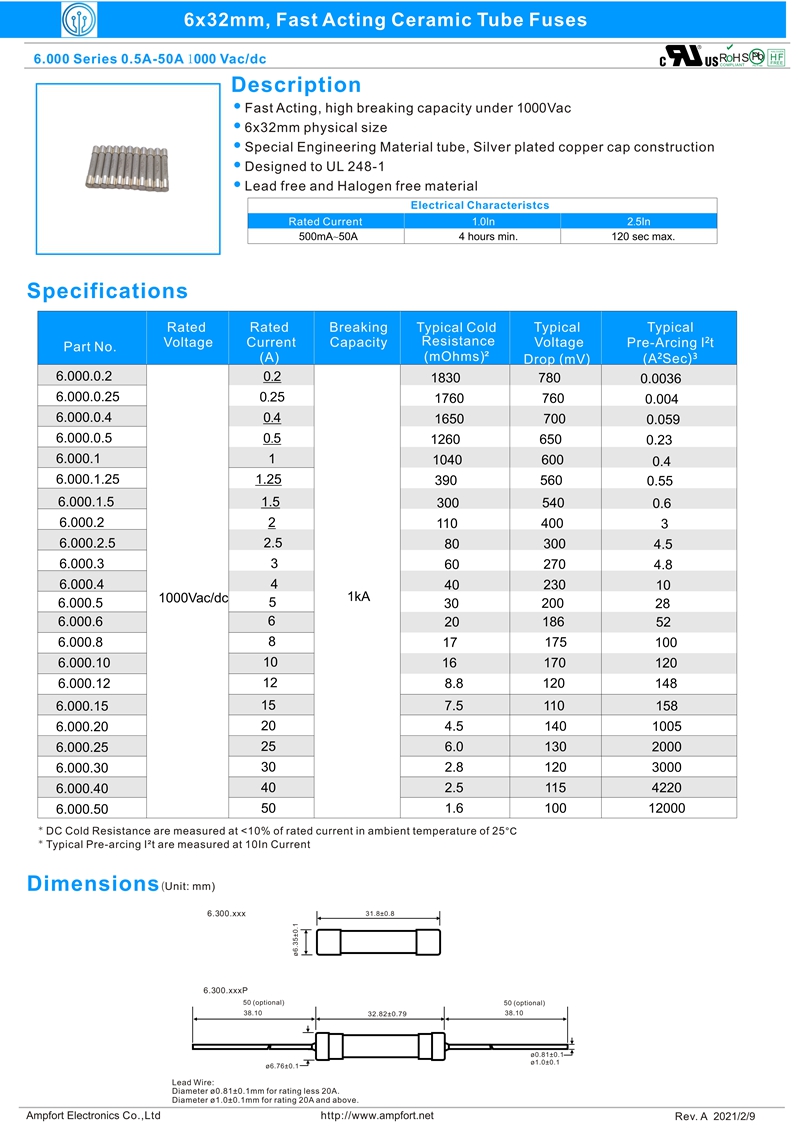

Specification
| P/N | Rated | Rated | Breaking | Typical Cold | Typical | Typical |
| Voltage | Current | Capacity | Resistance | Voltage | Pre-Arcing I²t | |
| (V) | (A) | (KA) | (mOhms)² | Drop (mV) | (A²Sec)³ | |
| 6.300.0.2 |
250Vac/dc 300Vac/dc 500Vac/dc 600Vac/dc 750Vac/dc 1000Vac/dc |
0 . 2 | 10KA | 1830 | 780 | 0.0036 |
| 6.300.0.25 | 0.25 | 1760 | 760 | 0.004 | ||
| 6.300.0.4 | 0.4 | 1650 | 700 | 0.059 | ||
| 6.300.0.5 | 0.5 | 1260 | 650 | 0.23 | ||
| 6.300.1 | 1 | 1040 | 600 | 0.4 | ||
| 6.300.1.25 | 1.25 | 390 | 560 | 0.55 | ||
| 6.300.1.5 | 1.5 | 300 | 540 | 0.6 | ||
| 6.300.2 | 2 | 110 | 400 | 3 | ||
| 6.300.2.5 | 2.5 | 80 | 300 | 4.5 | ||
| 6.300.3 | 3 | 60 | 270 | 4.8 | ||
| 6.300.4 | 4 | 40 | 230 | 10 | ||
| 6.300.5 | 5 | 30 | 200 | 28 | ||
| 6.300.6 | 6 | 20 | 186 | 52 | ||
| 6.300.8 | 8 | 17 | 175 | 100 | ||
| 6.300.10 | 10 | 16 | 170 | 120 | ||
| 6.300.12 | 12 | 8.8 | 120 | 148 | ||
| 6.300.15 | 15 | 7.5 | 110 | 158 | ||
| 6.300.20 | 20 | 4.5 | 140 | 1005 | ||
| 6.300.25 | 25 | 6.0 | 130 | 2000 | ||
| 6.300.30 | 30 | 2.8 | 120 | 3000 | ||
| 6.300.40 | 40 | 2.5 | 115 | 4220 | ||
| 6.300.50 | 50 | 1.6 | 100 | 12000 |
